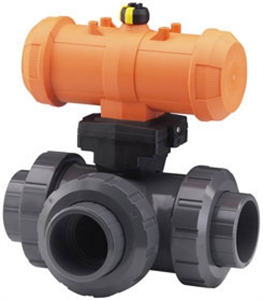

Range: PA11 from d16DN10 up to d32DN25 and PA21 from d40DN32 up to d63DN50
Nominal torque: 10 Nm (7.4 lb. ft.)
Peak torque: 20 Nm (15 lb. ft.)
Cycle time: 1 - 2 s, with throttle valve up to 5 s
Operation pressure max.: 7 bar (101 psi)
Working principle: Rack and pinion
Operation media: Neutral, non corrosive gasses (fluids on request)
Modes of operation: Fail-safe to close (FC), Fail-safe to open (FO), Doule actuating (DA)
ISO 5211:
PA11: F04
PA21: F05
|
|
Dimension range: d16DN10 to d63DN50
End connectors: solvent cement sockets and -spigots, fusion spigots and –sockets, threaded ends
Standards: ISO, BS, ASTM und JIS
Nominal Pressure: PN 10 for all materials
Materials: PVC-U, PVC-C, ABS, PP-H und PVDF
Sealing:
O-Rings: EPDM and FPM, further on request
Ball seal: PTFE
|
